Remote SSH with Zed

How to get Zed's remote SSH working on UW-Madison’s CS lab machines (with AFS, load balancers, and all).

Shell Startup Output

I do work on UW-Madison’s CS lab machines over SSH. VSCode handles this fine with its Remote SSH extension, but I’ve been using Zed and wanted the same workflow there. Getting it working required fixing three things, starting with this one.

Zed’s remote architecture splits the editor into a local UI and a remote backend. When you connect, Zed SSHes in and starts a zed-remote-server binary on the remote machine. The two halves communicate over the SSH channel itself.

So anything your shell prints during startup corrupts the protocol. A Powerlevel10k instant prompt, a conda greeting, an echo in your rc file, etc. Zed hangs at “Starting proxy…” and never connects.

You fix this by adding [[ -o interactive ]] || return 0 as the very first line of your remote ~/.bashrc. If your remote shell is zsh instead, put it in ~/.zshrc.¹1 The CSL machines default to bash. I installed zsh on mine a couple years ago, but most people will be editing .bashrc. Check with echo $SHELL on the remote if you’re not sure. This makes non-interactive shells exit before printing anything.

Use return 0, not bare return. A bare return propagates exit code 1 from the failed interactive test, and Zed treats that as a startup failure.

Unix Sockets on AFS

After fixing the shell issue, Zed connected but immediately crashed with “Client exited with exit_code 1.” This is an improvement.

I looked at Zed’s logs (Cmd+Shift+P and click “zed: open log”) and found the problem. Zed creates Unix domain sockets in ~/.local/share/zed/server_state/ for inter-process communication. The CS lab home directories live on AFS²2 AFS (Andrew File System) is a distributed network filesystem common at universities. It handles regular files fine but doesn’t support Unix sockets or flock. VSCode’s Remote SSH actually hits a similar AFS problem, but with file locks instead of sockets. Same class of fix though: redirect to /tmp., and AFS doesn’t support them.

You can fix this by symlinking Zed’s data directory to a local filesystem. Only the server_state subdirectory strictly needs it, but symlinking the whole thing is simpler. Run these on the remote to move any existing Zed data aside and point ~/.local/share/zed at /tmp instead:

mv ~/.local/share/zed ~/.local/share/zed.bak 2>/dev/null
mkdir -p ~/.local/share /tmp/zed-$USER
ln -s /tmp/zed-$USER ~/.local/share/zed
cp -r ~/.local/share/zed.bak/* /tmp/zed-$USER/ 2>/dev/null

/tmp gets cleared on reboot, so you’ll want mkdir -p /tmp/zed-$USER in your rc file too.

The Load Balancer

After fixing both of those, I was still getting the same exit code.

The hostname best-linux.cs.wisc.edu is a DNS load balancer that routes each connection to a different physical machine³3 Well, VMs nowadays. The old physical labs (rockhopper, royal, and the rest in the CS building) are empty now. RIP computer labs :(. Zed makes several SSH connections during setup (platform discovery, binary upload, server start, protocol handshake) and each one can land on a different host. /tmp is per-machine, so the binary ends up on one box and the sockets on another.

You fix this by connecting to a specific machine instead of the load balancer. SSH into best-linux once, run hostname, and note the machine you land on. Use that everywhere.⁴4 The specific machine doesn’t matter. You just need every connection to hit the same one.

The Working Configuration

All together:

~/.ssh/config

Host uw
    HostName best-linux.cs.wisc.edu
    User your-cs-login

# Zed needs a specific machine, in this case vm-instunix-15
Host uw-zed
    HostName vm-instunix-15.cs.wisc.edu
    User your-cs-login

Host *
    ControlMaster auto
    ControlPath ~/.ssh/%r@%h:%p
    ControlPersist 300s

The ControlMaster block is optional. Some convenient bonus config. It reuses SSH connections so you don’t have to re-authenticate every time.

~/.config/zed/settings.json

{
  "ssh_connections": [
    {
      "host": "vm-instunix-15.cs.wisc.edu",
      "username": "your-cs-login",
      "projects": [
        { "paths": ["/home/your-cs-login"] }
      ]
    }
  ]
}

Remote ~/.bashrc (first lines):

[[ -o interactive ]] || return 0

mkdir -p /tmp/zed-$USER

# ... rest of your config

Connect via the Command palette (open with Cmd+Shift+P) and click “project: open remote”, or zed ssh://user@vm-instunix-15.cs.wisc.edu/home/user (if you enabled the Zed CLI).

If the remote machine can’t reach GitHub to download the server binary, add "upload_binary_over_ssh": true to the connection config. Zed will download the ~90MB binary locally and SCP it over.⁵5 The binary lives at ~/.zed_server/ on the remote, separate from ~/.local/share/zed/. AFS handles regular files fine, so this path doesn’t need the /tmp treatment.

That’s It

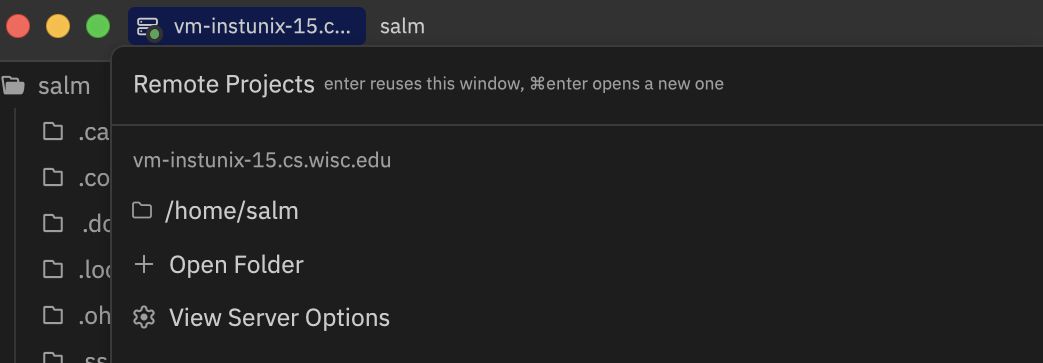

Once configured, it works well! You get Zed’s Tree-sitter highlighting locally and language servers running on the remote, and the whole thing is snappy.

Fair warning though: Zed’s error messages are not ideal. For example, “Client exited with exit_code 1” covers about four different failure modes. If you run into trouble, check Zed’s log locally and ~/.local/share/zed/logs/server-setup-*.log on the remote. Between the two you’ll find the real error. I certainly spent more time reading logs than writing config.
